continuous wave laser / solid-state / multiple-wavelength / tunable
SWL 7500 Series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

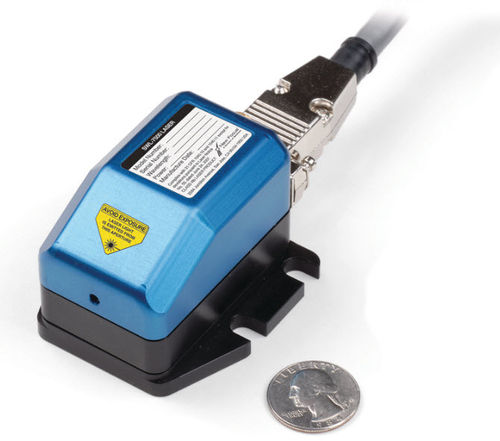

continuous wave laser continuous wave laser - SWL 7500 Series
  • Continuous wave laser
{{requestButtons}}

Characteristics

  • Operational mode:

    continuous wave

  • Technology :

    solid-state

  • Spectrum:

    multiple-wavelength, tunable

  • Other characteristics:

    OEM, diode

  • Wavelength:

    Max.: 1,064 nm

    Min.: 632.5 nm

  • Power:

    0.008 W, 0.02 W, 0.07 W, 0.1 W, 0.15 W

Description

The SWL-7500 series lasers offer extremely narrow linewidths from an OEM-ready platform designed for stability and longevity. This new addition to our market-leading line of external-cavity diode lasers offers single longitudinal mode performance at a single, fixed wavelength. The user may choose the output wavelength anywhere within a specified wavelength range and the factory will build the laser at that precise wavelength. Long-term wavelength and power stability makes this laser a miniature work horse. With a footprint that is smaller than a business card, the laser will fit in most instrument designs with room to spare. We have carefully designed these lasers to operate continuously on a single longitudinal mode and minimal frequency drift as the heart of any imaging, metrology, or spectroscopic measurements.
