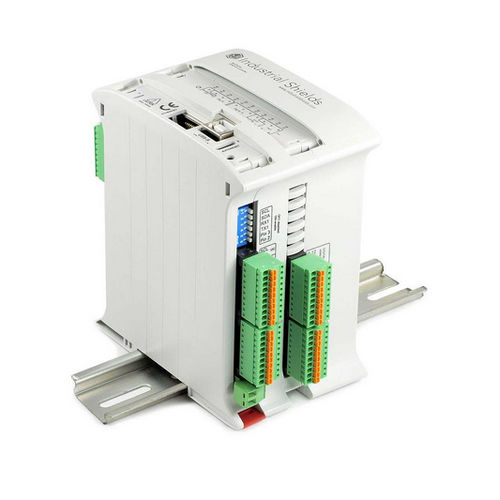

Analog inputs PLC SPARTAN 21
relay outputsModbusRS485

analog inputs PLC
analog inputs PLC
Add to favorites
Compare this product


Characteristics

Input/output
analog inputs, relay outputs
Network
Modbus, RS485, RS232, Ethernet
Other characteristics
modular

Description

12 Inputs 8 Outputs Communications Ethernet, USB, RS485 Half Duplex, RS232 (Modbus RTU / Modbus TCP) Arduino PLC based details Industrial Automation Modular PLC This is the first equipment based on the Arduino technology designed for professional use. This PLC has 21I/Os. It also contains several communication ports that provide more flexibility and control. The SPARTAN family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc… Programming Software This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free. Instantaneous connection and coding The PLC SPARTAN is programmed through the USB ports. This PLC can also be programmed through an Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Arbosx and the Touchberry Pi with the instantaneous connection. Total Inputs - 12 Total Digital Optoisolated Inputs (7-24Vdc) - 7 Digital Optoisolated Inputs (7-24Vdc) - 5 Digital Optoisolated Inputs (7-24Vdc) | can work like interrupt Inputs INT (7-24Vdc) - 1 10 bit Analog Inputs (0-10V) | Digital (5-24Vdc) Inputs configurable by software - 6 Total Outputs - 8 Digital Optoisolated Outputs (5-24Vdc) - 5 Digital Optoisolated and PWM (5-24Vdc) | 8 bit Analog (0-10V) Outputs configurable by switch - 3 Relay Outputs (220Vac - 5A) - 0

Catalogs

No catalogs are available for this product.

See all of Boot and Work Corp, S.L.‘s catalogs
