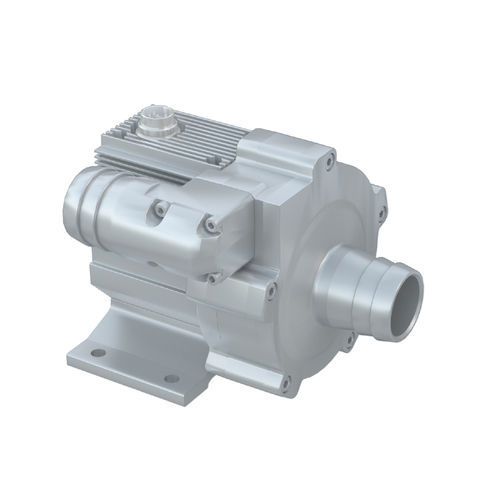

Centrifugal blower C105H2-04

airhigh-pressurealuminium

A very powerful blower designed for applications requiring both high flow and high pressure, with integrated driver. - Dimensions: 117.5 x 102 x 132 mm - At nominal voltage (24 V), the maximum pressure at zero flow is around 18,500 Pa, and the maximum flow at free flow is around 727 lpm. - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 24,000 Pa at zero flow, or 980 lpm at free flow. - This blower has an Aluminum housing. - Modular blower with 4 positions of outlet available, and 3 positions of driver. - This blower has an integrated driver. For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office and describe your application. - Dimensions: 117.5 x 102 x 132 mm - Maximum pressure at zero flow: 18,500 Pa - Maximum flow at free flow: 727 lpm - Aluminum housing - Modular blower with multiple outlet and driver positions - Integrated driver
