scribe marking system / pneumatic / manual / compact

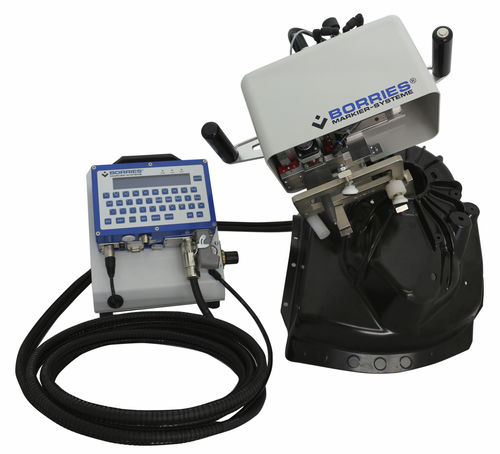

317 Hand Held VIN Scribe Marking Unit

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
scribe marking system scribe marking system - 317 Hand Held VIN Scribe Marking Unit


  • Technique:


  • Operational mode:

    pneumatic, manual

  • Other characteristics:

    compact, mobile


With its unique ergonomic features and ease of use, the device is ideal for mobile use. The scribe marking system type 317 is available with different handles for flexible adaptation and handling. Being a lightweight of 5.5 kg (without controller, pneumatic and chuck), the unit sets new standards. It offers a large marking area of 120 mm x 25 mm at its small dimensions. Via quick interchangeable, optional fixtures it is possible to adopt to virtually any vehicle geometries. The compact controller provides extensive opportunities for data input via PC, barcode scanner, PLC or the integrated keypad. By this keypad the easy creation and selection of the model-dependent imprinting orders is provided.

• Vehicle-related fixtures with manual, pneumatic or magnetic clamp functionality
Model article number: 317
