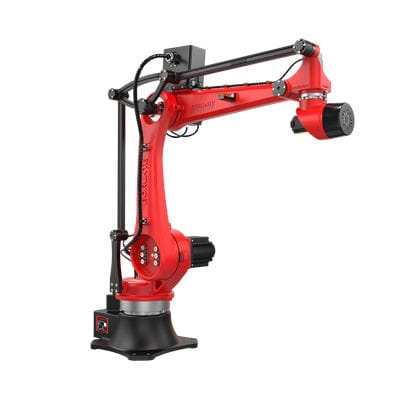

Articulated robot BRTIRPC1508A 5-axishandlingpainting
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 5-axis
- Function
- handling, painting
- Mounting
- floor-mounted
- Application domain
- for injection molding machines, rugged
- Protection level
- IP50
- Other characteristics
- compact
- Payload
8 kg
(17.637 lb)- Reach
1,500 mm
(59.06 in)- Repeatability
0.05 mm
(0.002 in)- Weight
155 kg
(341.7 lb)
Description
BRTIRPC1508A applies full servo motor drive with fast response and high position accuracy. The maximum load is 8KG, the maximum arm length is 1500mm. Compact structure achieves a wide range of movements, flexible sports, precise.Suitable for dangerous and harsh environments, such as stamping, pressure casting, heat treatment,painting, plastic molding, machining and simple assembly processes. And in the atomic energy industry, completing the handling of hazardous materials and others. It is suitable for punching. The protection grade reaches IP50.Dust-proof. The repeat positioning accuracy is ±0.05mm.
