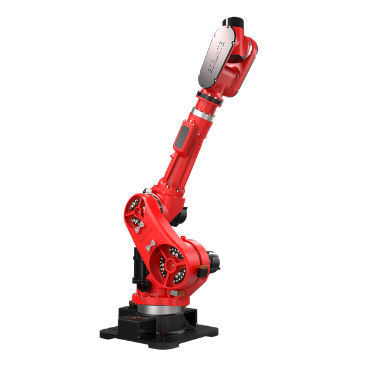

Articulated robot BRTIRBR2260A 6-axishandlingIP54
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Function
- handling
- Protection level
- IP54, IP50
- Other characteristics
- compact, high-precision
- Payload
60 kg
(132.277 lb)- Reach
2,202.5 mm
(86.71 in)- Repeatability
0.1 mm
(0.0039 in)- Weight
750 kg
(1,653.5 lb)
Description
BRTIRBR2260A type robot is a six-axis robot developed by BORUNTE ROBOT CO,. LTD for bending applications. It has a maximum load of 60KG and a arm span of 2202.5mm. The shape of the robot is compact, and each joint is equipped with a high-precision reducer. The high-speed joint speed can flexibly carry out sheet metal handling and sheet metal bending. The protection grade reaches IP54 at the wrist and IP50 at the body.Dust-proof and water-proof. The repeat positioning accuracy is ±0.1mm.
