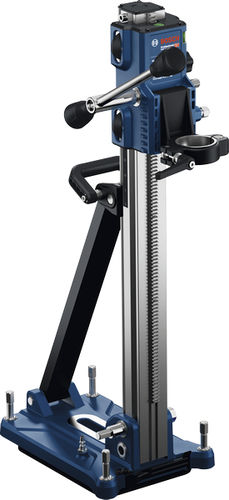

Drill attachment GCR 180 (Ⅱ)

Product overview
The PRO GCR 180 (Ⅱ) is a diamond core drilling stand designed for use with the EXPERT EXDB18V2-180 and PRO GDB180WE. Its durable aluminium column provides high torsional strength and a 45° swivel for angled drilling. Precision positioning is ensured by a bit centre pointer, spirit level and a drilling depth scale. A quick-release 60 mm clamping collar enables fast installation and removal. The combined base accepts anchor or vacuum mounting. The removable crank adjusts all screws for setup and operation.

Product highlights

• Durable aluminium column with high torsional strength and 45° swivel
• Bit centre pointer, spirit level and drilling depth scale for accurate positioning
• Quick-release 60 mm clamping collar
• Combined base mountable by anchor or vacuum
• Removable crank usable to adjust all screws

Equipment & Application
Intended for use with the EXPERT EXDB18V2-180 and PRO GDB180WE to drill large-diameter holes in concrete and masonry on walls, ceilings or floors. Typical applications include HVAC, plumbing and electrical installations and other large-hole core drilling tasks in construction and infrastructure projects.

Packaging & variant

• Variant included: Cardboard box
• Order number / Part number shown on site: 0.601.190.400 (displayed) / 3601A90400 (spare parts table)
• SKU on page: 0601190400

Technical specifications

• Working length, Z-axis: 475 mm
• Drill stroke: 495 mm
• Weight*: 13.2 kg
• Packaging dimensions (W x L x H): 400 x 925 x 300 mm
• Compatible drilling units: EXPERT EXDB18V2-180, PRO GDB180WE
• Clamping collar diameter: 60 mm (quick-release)
• Base: combined base (anchor or vacuum mounting)
• Accessories / scope: cardboard box (included with variant)
