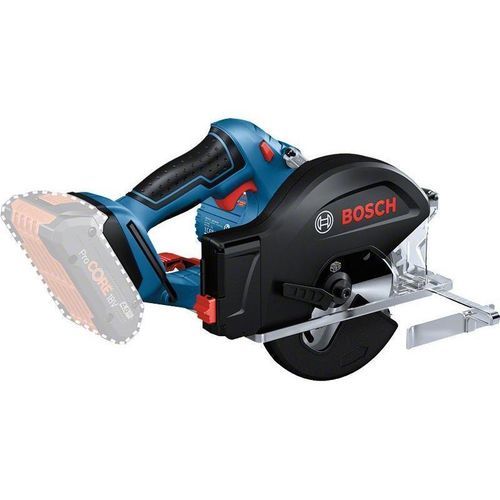

Circular saw GKM 18V-50

for metalsfor steelfor profiles

Product overview
The PRO GKM 18V-50 is a cordless metal circular saw designed for fast, precise cutting of metal materials such as cable trays, threaded rods and steel. It features an integrated chip collection box for nearly spark-free working, a cutting line indicator with viewing window for accurate cuts, and an ergonomic, compact design for handling in various positions.

Key features

• Nearly spark-free operation thanks to an integrated, easy-to-empty chip collection box
• Accurate cuts with a cutting line indicator, viewing window and integrated LED light
• Ergonomic handling due to an optimized grip and compact, well-balanced design for cuts in all positions
• Equipped with a saw hook for convenient hanging
• Supplied with a "Standard for Steel" circular saw blade optimized for cordless use to maximize battery runtime

Equipment & Application
The PRO GKM 18V-50 is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V system) and is also compatible with AMPShare, the multi-brand battery alliance. It is intended for quick and precise sawing of metal components, in particular cable trays, threaded rods and steel sections.

Included in supply (all variants)

• Parallel guide (Part Number: 2 610 347 119)
• 1 x circular saw blade, "Standard for Steel", 136 x 1.6/1.2 x 20 mm, 30 teeth (Part Number: 2 608 837 746)

Variant-specific packaging

• Variant: in cardboard box — includes cardboard box packaging
• Variant: in L-BOXX 238 — includes L-BOXX 238 (Part Number: 1 600 A01 2G2)

Additional information
The saw is supplied with a saw hook and a blade optimized for cordless use to increase battery runtime. The integrated LED provides a shadow-free view for precise cutting.

Technical data
No-load speed: 4,250 rpm
Saw blade diameter: 136 mm
Saw blade bore diameter: 20 mm
Weight excl. battery: 2.2 kg
Battery voltage: 18.0 V
Guide rail compatible: No
Packaging dimensions (W x L x H): 180 x 310 x 216 mm

caractéristiques / spécifications techniques

• No-load speed: 4,250 rpm
• Saw blade diameter: 136 mm
• Saw blade bore diameter: 20 mm
• Weight (excl. battery): 2.2 kg
• Battery voltage: 18.0 V
• Guide rail compatible: No
• Packaging dimensions: 180 x 310 x 216 mm
• Included accessories: Parallel guide; 1 x circular saw blade ("Standard for Steel") 136 x 1.6/1.2 x 20 mm, 30 teeth
• Compatible with Bosch Professional 18 V system and AMPShare
