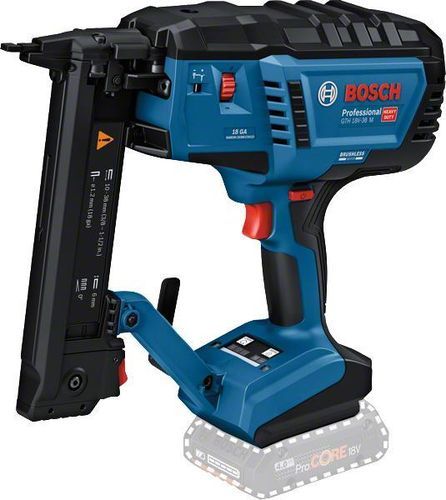

Portable stapler GTH 18V-38 M

battery-poweredfor textilesfor panels

Product Overview

• Cordless, brushless stapler delivering pneumatic-like performance without compressors, gas cartridges or cords.
• One-handed operation with thumb-actuated power switch for fast switching and use.
• Very low recoil and gasless operation to reduce wrist strain and eliminate fumes.

Product Highlights
Designed for professional tradespeople, this brushless stapler offers high performance with very low recoil to reduce fatigue during repetitive stapling tasks. It enables one-handed switching and operation while maintaining consistent driving power across staple lengths.

Equipment & Application
Suitable for concealed fastening of tongue-and-groove ceiling and floor panels (secret nailing), attaching furniture back panels, upholstery work, fixing lightweight wire or slat fences, installing trellis and attaching acoustic insulation. Compatible with the Bosch Professional 18V System and the multi-brand battery alliance AMPShare.

Additional Information

• Activation modes: full sequential actuation and contact actuation with automatic reversion
• One-handed power switch, HMI with service alert, stepless depth adjustment, dry fire lockout
• Double LED and wide-view contact tip for improved visibility
• Staple compatibility: 5.8 mm crown, 18 ga (1.2 mm), lengths 10–38 mm, 0° collation
• Magazine capacity: 110 pcs; Weight excl. battery*: 3.05 kg; Battery voltage: 18.0 V
• Sound pressure level: 87 dB(A); Sound power level: 98 dB(A); Uncertainty K (noise): 3 dB

Included in this variant

• In L-BOXX 238 (includes L-BOXX 238)

Caractéristiques / Spécifications techniques

• Order number: 0.601.482.501
• Part number (spare parts reference): 3601D82500
• EAN: 4053423253016
• Collation angle: 0°
• Nail / Staple type: Narrow crown staple
• Triggering system: Full sequential actuation + contact actuation with automatic reversion
• Weight excl. battery*: 3.05 kg
• Battery voltage: 18.0 V
• Magazine capacity: 110 pcs
• Packaging dimensions (W x L x H): 360 x 444 x 254 mm
• Staple width (crown): 5.8 mm
• Compatible nails/staples: Bosch staples and other compatible staples
• Staple length: 10 – 38 mm
• BITURBO: No
• Sound pressure level: 87 dB(A)
• Sound power level: 98 dB(A)
• Uncertainty K (noise): 3 dB
