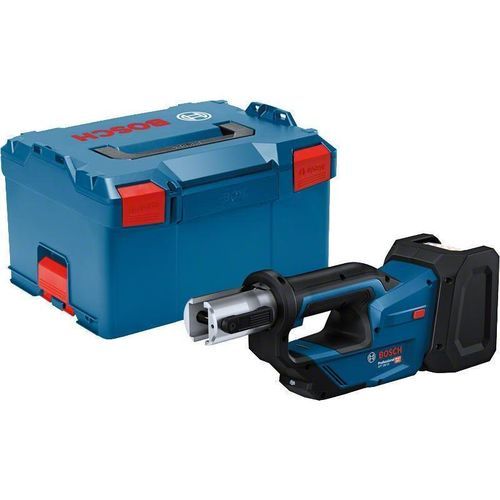

Electric crimping tool GPT 18V-19

for tubesfor end fittingsbattery-operated

Product Overview
The PRO GPT 18V-19 is a cordless press tool designed for access in confined spaces, featuring a compact body and a 360° rotatable head. Pressing cycles take under 3 seconds depending on pipe diameter. The tool includes a battery protection cover and a status LED that indicates successful cycles and error conditions. Order number 0.601.9M2.000.

Key Benefits

• Compact dimensions for working in restricted areas
• 360° rotatable head for flexible orientation of the press jaw
• Fast pressing cycles — typically ≤ 3 s depending on pipe diameter
• Battery protection cover to safeguard the battery during on-site use
• Status LED providing visual feedback for cycle confirmation and error indication

Equipment & Application
The PRO GPT 18V-19 is suitable for common metal and plastic fittings. It is compatible with Bosch compact press jaws, compact R-System press jaws, and Bosch-approved press jaws. Maximum compression range: plastics up to 40 mm and metal up to 35 mm. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.

Additional Information
Designed for professional use, the tool offers maintenance and spare-part availability. The integrated battery cover simplifies handling and protects the battery connection during operations on site.

Technical data (table)
Product category subdivision: Cordless Press Tool
Sound power level: 86 dB(A)
Uncertainty K: 3 dB
Sound pressure level: 78 dB(A)
Head rotation: 360 °
Pressing force max: 21 kN
Time pressing cycle: 3 s
Comp range dia max (metal): 35 mm
Comp range dia max (plastic): 40 mm
Calibration Interval: 40,000 cycles
BITURBO: No
Weight: 2.5 kg
Weight excl. battery: 2.5 kg

Technical specifications

• Model designation: PRO GPT 18V-19
• Order number: 0.601.9M2.000
• Product type: Cordless Press Tool
• Compatibility: Bosch Professional 18V System, AMPShare multi-brand battery alliance
• Pressing force (max): 21 kN
• Pressing cycle time: 3 s (typical, depends on pipe diameter)
• Head rotation: 360°
• Compression range (metal): up to 35 mm
• Compression range (plastic): up to 40 mm
• Calibration interval: 40,000 cycles
• Sound power level: 86 dB(A); Sound pressure level: 78 dB(A); Uncertainty K: 3 dB
• Weight (excl. battery): 2.5 kg
• Battery protection cover: yes
• Status LED: visual feedback for successful cycles and error indication
