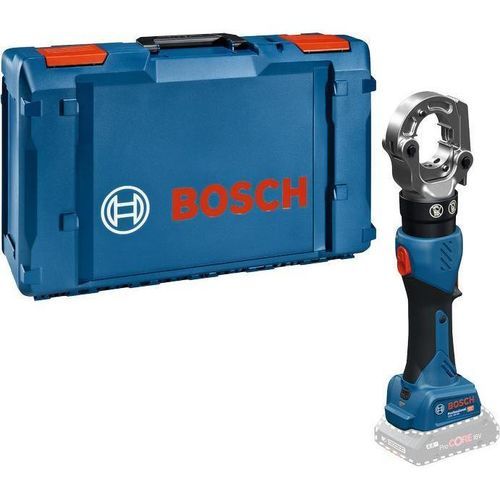

Hydraulic crimping tool GPH 18V-60for cable lugs
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Applications
- for cable lugs
Description
Overview
Equipment & Application
Included in this variant
Additional product information
Technical specifications
- Reliable hydraulic crimping with visual quality control via status LED
- Precise pressure monitoring through an electronic pressure sensor
- Long service life with an extended maintenance interval of 20,000 crimps
- Ergonomic design with a 340° rotatable crimping head and optimized centre of gravity for comfortable one-handed and two-handed use
- Tool history, key parameters and maintenance intervals accessible via USB connection and read-out software
- Manual pressure release and manual retraction stop for safe and flexible operation
Equipment & Application
- Engineered for crimping cable lugs on copper and aluminium conductors
- Crimping range: 6 mm² to 300 mm²
- Maximum crimping force: 60 kN
- USB connection (USB 2.0) with read-out functionality for maintenance data export
- Integrated work light for improved visibility at the crimping point
Included in this variant
- XL-BOXX (Part Number: 1 605 438 1JG)
Additional product information
- Automatic retraction: Yes
- Automatic pressure limitation and monitoring: Yes
- Maximum stroke length: 17 mm
- Head rotation: 340°
- Crimping time: approx. 2 to 5 s (depending on cable cross-section)
Technical specifications
- Maximum crimping force: 60 kN
- Maximum crimping range: 300 mm²
- Minimum crimping range: 6 mm²
- Head rotation: 340°
- Maximum stroke length: 17 mm
- Automatic retraction: Yes
- Suitable connecting materials: Cu and Al
- Maintenance interval: 20,000 cycles
- Manual pressure release: Yes
- Manual retraction stop: Yes
- USB connector: Yes (USB 2.0)
- Read-out functionality: Yes
- Work light: Yes
- Automatic pressure limitation and monitoring: Yes
- Crimping time: 2 s to 5 s (depending on cable cross-section)
- Sound pressure level: 59 dB(A) (sound power level: 67 dB(A), uncertainty K: 3 dB)
