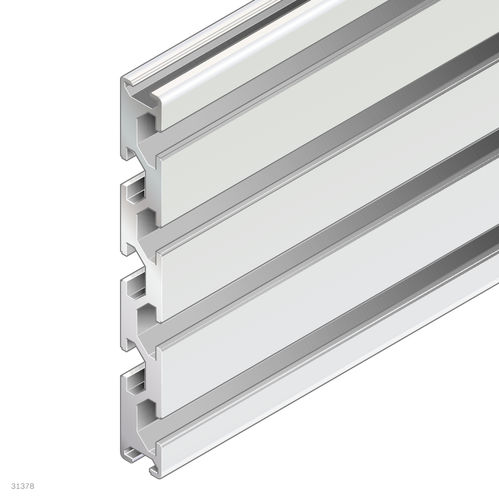

Aluminum profile 3842537821rectangularindustrialopen
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Configuration
- rectangular
- Applications
- industrial
- Other characteristics
- open
- Width
15 mm
(0.6 in)- Height
120 mm
(4.7 in)
Description
Profile slot - 8
Open slots - 9
Profile type - Standard
Length [Lmax] [mm] - 3000
Delivery unit - 10
Area moment of inertia in x-direction [lx] [cm⁴] - 110.4
Profile surface [A] [cm²] - 9
Product description - 15x120 -/-
Moment of resistance in the x-direction [Wx] [cm³] - 18.4
Area moment of inertia in y-direction [ly] [cm⁴] - 2.2
Mass [m] [kg] - 2.4
Recommended accessories - Cover cap 15x120, signal gray,Cover cap 15x120, black
Moment of resistance in the y-direction [Wy] [cm³] - 2.7
Weight [kg] - 83
