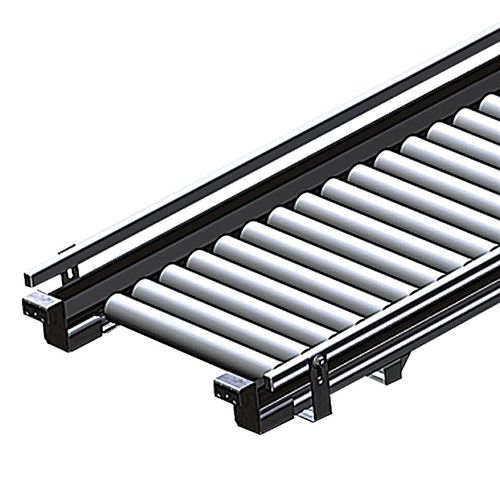

Conveyor track EcoFlow with rail holder
Rail holder for suspension on the tubular cross tie: preferably used in flow rack systems or at workstations for supplying materials in the accessory upright
For supplying materials to workstations and in flow rack systems
For the manual linking of workstations
Aluminum U-profile conveyor track
Full-width rollers available in plastic, steel or stainless steel
Recommended conveyor track width: BF = container width b + 5 mm
Save money by choosing the larger roller distance R
Available as ESD-conductive version
Product attributes -
Profile slot - 10
Conductivity [ESD] - yes, no
Conveyor medium FM - Rollers in plastic, steel, stainless steel
Version [A] - Disassembled, assembled
Gradient G - 0 ... 10 % (recommended: 6 %)
Horizontal distance between tubular cross ties TM - 355 ... 6000 mm
Rail holder version S - With/without stop
Material - Aluminum profile
Lateral guide SF - with; without
Roller distance R - 50, 100 mm
Delivery information - Slide rail border mounted to the outside (BG=0)
Conveyor track width min [BF min] [mm] - 200
Conveyor track width max [BF max] [mm] - 1000
Weight [kg] - 0
