Drive unit Hägglunds DUe

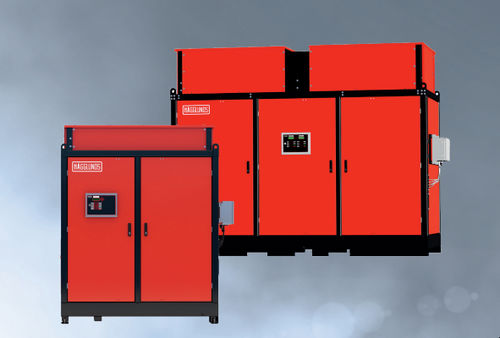

The DUe drive unit provides the hydraulic motor(s) with required hydraulic oil flow and pressure together with system control functionality. The drive unit is divided to 3 basic sizes depending on electric motor power and hydraulic flow requirements: • Small (S) • Medium (M) • Large (L) The drive units are built with two or three hydraulic compartments which contains one with the hydraulic oil tank and one or two with the electric motor/pump combination. All compartments are assembled in one common cabinet. The basic combinations will be DUe S2, DUe S3, DUe M2, DUe M3, DUe L2 and DUe L3. A single compartment cabinet can be added to the M and L variants for higher flow requirements, for emergency drives or as standby unit. The drive unit supports functionality for one or two driven machine shafts. Functions as cold/warm flushing and brake circuits for the hydraulic motors are available as options. The drive unit has an embedded control system with a large variety of configurable functionality to simplify the control and monitoring of the hydraulic drive. The control system is pre-programmed and easy to configure and contains functions such as: • Variable-speed control • Speed feedback • Power limitation • Industrial fieldbus communication • Analog and digital signal monitoring • Pressure control (torque control) and application specific functions such as: – Friction control – Shredder control – Synchronized control For detailed functionality and configuration, see User manual Hägglunds Spider, RE 15330-WA.
