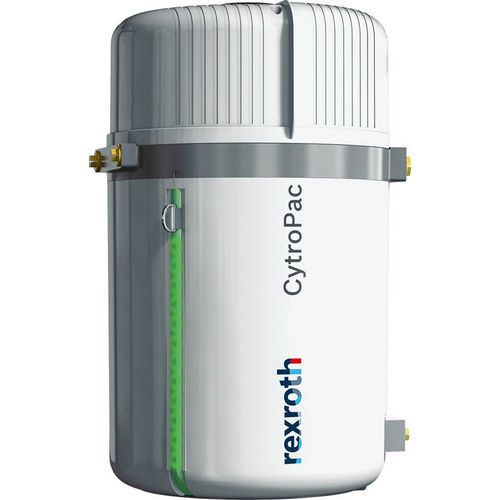

Electrically-powered hydraulic power unit CYTROPAC-1X/20/AF1AS04/2/B/WA/1/7035

pumplow-noisecompact

Small hydraulic power unit for up to 1.5 kW with variable-speed drive Compact design for easy integration, energy-efficient variable-speed pump drives, low noise thanks to innovative positioning of components, equipped for i4.0 with integrated frequency converter and sensors Compacter layout for easy integration Energy-efficient variable-speed pump drives Low noise thanks to innovative positioning of components Equipped for i4.0 with integrated frequency converter and sensors Max. pressure [bar] - 70 Max. flow [l/min] - 16 Oscillating volume [l] - 10 Supply voltage - 380…480 V AC (-15%/+10%) Tank capacity [l] - 20 Performance class [kW] - 1.5 Conformity description - CE Machinery Directive 2006/42/EC appendix 2B (declaration of incorporation) Hydraulic fluid - HLP Weight [kg] - 63
