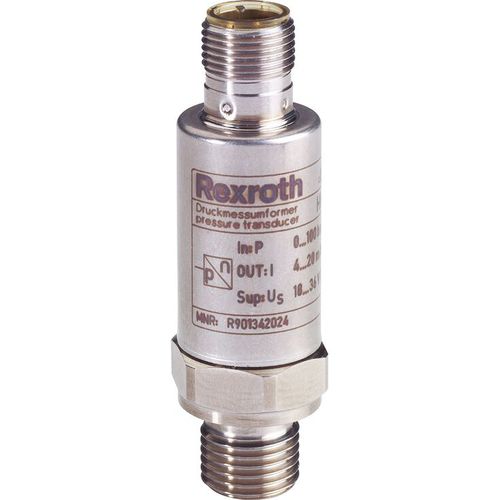

Relative pressure transducer HM 20-2X/250-C-K35-Nthin-filmelectromagneticanalog
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- thin-film, electromagnetic
- Output
- analog
- Electrical connection
- M12 connector, 4-pole
- Supply voltage
- 24VDC
- Mounting
- threaded
- Process connection
- G 1/4
- Material
- stainless steel
- Other characteristics
- CE
- Pressure range
Max.: 250 bar
(3,625.94 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Pressure transducer with analog output 4 … 20 mA, pressure range 0 … 250 bar, connector 4-pole M12x1 A-coded, throttle element
Short signal rise time < 1 ms for dynamic pressure control. All components in contact with the media are made of stainless steel. High degree of measurement accuracy of < 0.5% FS. Excellent overload and bursting behavior.
Thin film measuring cell
Output 4 ... 20 mA
Analog output: 4 … 20 mA
Hydraulic connection G1/4
Throttle element in the pressure tube
Throttle element in the pressure channel
Connector 4-pole, M12x1, A-coded
