Position measuring system IMScompact

lengthinductivemagnetic

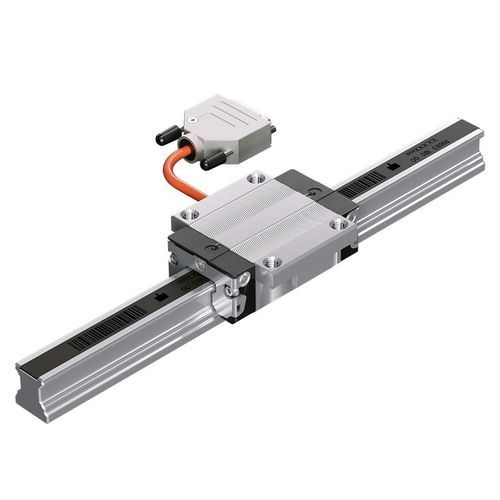

With the new integrated, magnetic measuring system "IMScompact", Rexroth expands their product range of integratedmeasuring systems and thus opens up an extended area of application for linear position measurement systems. With minimal spatial requirements, i.e. the new size 15, a maximum measuring length of up to 17.8 meters across railjoints, with incremental and absolute interfaces as well as with a simplified structural design, the new IMScompact seriessupplements the highly precise IMS inductive measuring system. It is applied in a wide variety of fields in automationtechnology, wood and plastics processing, sheet metal working, linear direct drive technology and general mechanicalengineering. The proven Rexroth quality characteristics of interchangeable design, modularity, robustness and easy assembly wereconsistently continued here. In connection with superior logistics, the global distribution and service, the customer willbenefit from simplified work across the entire value adding chain from structural design, purchasing and logistics toassembly and maintenance. Compact ▶ Construction-space neutral, integrated scanner electronics ▶ Sizes 15, 20, and 25 in six runner block designs ▶ Runner block accessible from all sides (lubrication, cleaning) Flexible ▶ Magnetic strip can be installed across rail joints ▶ Length finishing with manual tools ▶ Any magnetic strip and rail size can be combined with any electrical interface ▶ Compatible with the full BSHP product range ▶ Compatible with the braking and clamping units, bellows, front seals and front lube units ▶ Lateral cable output in all directions
