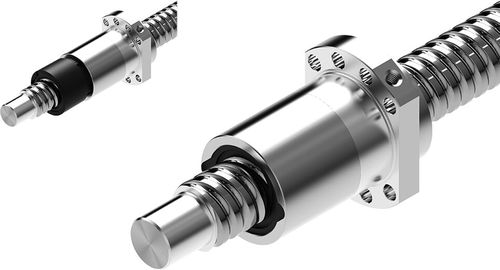

Flange nut FED-E-Bmetalfor ball screwwith seal
Add to favorites
Compare this product
Characteristics
- Types
- flange
- Material
- metal
- Other characteristics
- for ball screw, with seal
- Nominal diameter
Max.: 63 mm
(2.48 in)Min.: 16 mm
(0.63 in)
Description
Single nut with flange FED-E-B, size 40 x 40R x 6 - 6
Single nut with flange FED-E-B with standard seal and standard axial clearance
Nominal diameter d0 = 40
Lead P = 40 (right)
Ball diameter Dw = 6
Number of ball track turns i = 6
Mounting dimensions similar to DIN 69051, Part 5 flange type B
Nut for significantly increasing the dynamic and static load capacity
With seals
Preload class: C0, C00, C1, C2
Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical
notes and information, “Product description”), T5, T7, T9
