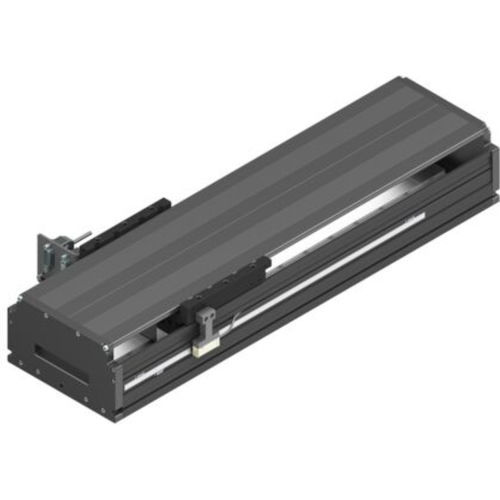

Three-phase linear motor LMM-140-NN-1

iron-core

Linear motor module LMM. Nominal size LMM-140. Maximum travel range smax 1,444 mm. Linear motor with iron core Product Description Linear motor module LMM-140-NN-1 Size = 140 Length (L) = 1616 mm Maximum travel range = 1444 mm Version = MA01 - with linear motor Guideway = 001 - frame with ball rail system Drive = 032 - linear motor with iron core, type IC-150B-050-W2 Carriage = 032 - carriage length 132 mm Cover = 001 - with cover plate Length measuring system = 005 - optical, absolute, resolution 0.05 µm, BiSS-C interface Lubrication = LSS - standard lubrication Documentation = 001 - standard final testing Technical Specs Product attributes - Nominal size [mm] LMM-140 Motor type Linear motor with iron core Motor IC-150B-050-W2 Maximum permissible moving external load mex max [kg] 10.0 Length L [mm] 1616.0 Width [mm] 140.0 Height [mm] 74.0 Maximum travel range smax [mm] 1444.0 Maximum acceleration rate amax [m/s²] 250.0 Maximum permissible linear speed vmax [m/s] 5.0 Continuous nominal force FdN at 100 °C [N] 69.0 Max Force [N] 242.0 Note: maximum force Maximum force and current: 4% duty cycle and 1 second duration Dynamic load capacity, guideway Cgw [N] 32035 Dynamic torsional moment load capacity Mt [Nm] 1394.0 Maximum current [A] 12.7 Dynamic longitudinal moment load capacity ML [Nm] 1217.0 Moved mass of system mca [kg] 1.9 Continuous current at 100 °C [A] 3.3 Weight [kg] 21.9 Counter EMK constant KEMK [Vs/m] 17.4 Base friction force FRs [N] 60 Carriage length Lca [mm] 132 Graduated lengths [mm] 84 Motor attraction Fatt [N] 420 Intermediate circuit voltage Vdc [V] 600
