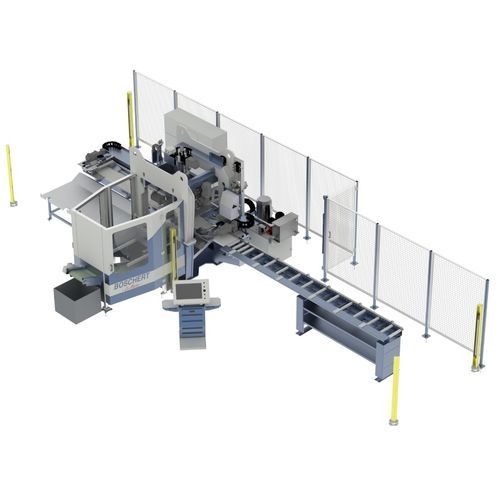

CNC punching machine CuMaster

tappingpunching

Maximum dimensions of work piece Length - - 4000 mm Width - - 15-305 mm Thickness - - 3-20 mm Speeds - - Max. Axis - - 100 m/min Max. stroke per minute - - 120 (22t) 58 (60 t) Tooling - - Number of tool stations - - 8 Max. Number of punching tools - - 64 Tapping unit - - Ja Max. diameter - - 88,9 mm Multitool 3 Stations - - max. 31.7 mm Stempeldurchmesser Multitool 8 Stations - - max. 16.0 mm Stempeldurchmesser Parting tool - - 200x8 mm optional Axis - - Positioning Accuracy - - +- 0.1 mm Repeatability - - +- 0.05 mm - - Space requirement and weights - - Length - - 8190 mm Width - - 4775 mm Height - - 2364 mm Weight - - 12000 Kg Elektrical Values - Electrical connecting value - - 30 KvA Required fuse - - 3 x 35A
