hydraulic press brake / CNC
Brake G-Bend

Add to MyDirectIndustry favorites

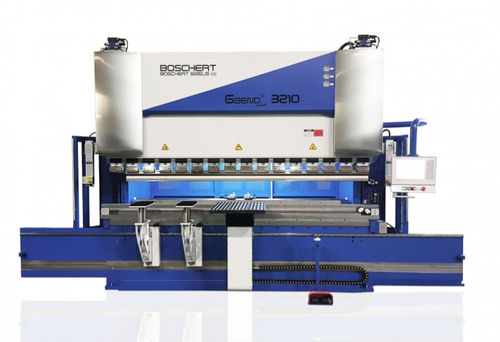

hydraulic press brake / CNC hydraulic press brake / CNC - Brake G-Bend
  • Hydraulic press brake / CNC
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Control type:

    CNC

  • Press force:

    Min.: 800 kN

    Max.: 2,900 kN

  • Folding length:

    Min.: 2,600 mm

    Max.: 3,100 mm

Description

Standard equipment
Stroke 250mm - Daylight 515mm
Industrial control Cybelec ModEva 10S with graphical simulation
Y1, Y2 independent hydraulic cylinders, proportional valve technology
Extra welded frame on the sides. Ram guidance with double roller bearings
Efficient, low noise, high speed, superior accuracy hydraulic system
2 axis high speed back gauge system (500mm/s X) X+R with double linear quides
Standard CNC controlled anti deflection system
Standard heavy duty front gauges on linear guide
Mechanical upper tool clamping with fast tool change horizontalvertical loading & unloading
Mechanical lower tool clamping
Standard Laser safety Fiessler German origin, automatic height adjustment, CE certified
Wide selection of extra equipment
