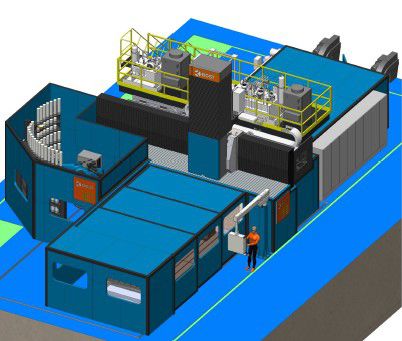

3-axis CNC milling machine PMF verticalwith fixed portalgrinding
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with fixed portal
- Associated functions
- drilling, grinding
- Power
37 kW, 82 kW
(50.31 hp, 111.49 hp)
Description
Distance between column - mm - 3.000 – 4.000
Table dimension - mm - 3.000 x 2.000 – 10.000 x 3.500
Table stroke - mm - 3.250 – 5.300
Max. Working Height - mm - 1.000 – 1.500
Max. Working Height with moving crossrail - mm - 1.500 – 2.800
RAM cross section - mm - 500x500
RAM Stroke - mm - 1.000 – 1.500
Milling power - kW - 37 - 82
ATC/AAC - Disc / Chain /Robot
Enclosure - Peripheral
Attachments - Turning tool holders, Milling&Drilling heads, grinding heads, gear cutting heads
Automation - Rotary pallet changer, transfer pallet changer, “Y” axis pallet changer.
Control - Siemens / Fanuc
