Manual assembly station avero

electronic componentssurface-mount technology (SMT)for industrial applications

Product overview

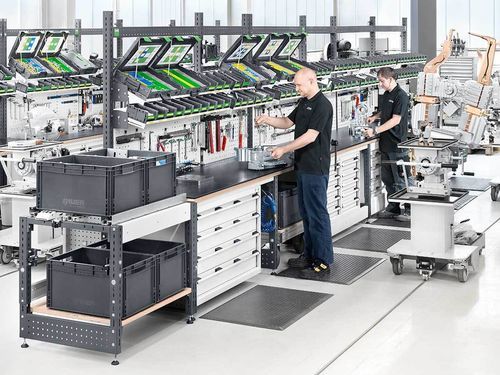

avero is a modular workstation and workbench system for manual assembly, rework, test stations and complete assembly lines. The system suits single-station assemblies as well as interconnected production lines and can be integrated into the material flow via roller conveyors and docking trolleys.

Applications

• Single-station assembly and packing tables
• Rework and test stations (including ESD-protected versions)
• Assembly and testing systems / production lines (One-Piece-Flow, Single-Piece-Flow, One-Set-Flow)
• Electronics manufacturing with ESD requirements
• Integration into existing production and material flow systems

Key features

• Modular kit system: flexibly combinable components for customized workstation concepts
• Material mix possible: components combinable from steel and aluminum profiles
• Height-adjustable workbenches (manual or electric) for ergonomic working positions
• Perforated back panels and swivel frames for tool and material organization within reach
• Optional ESD versions and conductive accessories for sensitive components
• Roller conveyors, docking trolleys, supply trolleys and FIFO racks to support material flow
• Integrated power and media supply (concealed cable routing, cable ducts, pneumatic and electrical connections)
• Extensive accessories: shelves, brush strips, material supports, fixtures and holders

Digitization & software

• Compatible with digital assistance systems and manufacturing software (example integration: elution two)
• Supports documentation, real-time assembly instructions and quality assurance
• Online configurator and 3D planning service for visualization and dimensioning of workstation solutions

Planning & service

• 3D planning and visualization service for individual layouts
• Support for process integration, material flow planning and connection to IT infrastructure
• Preconfigured solutions (e.g. packing tables) as well as individual system concepts

Technical characteristics / specifications

• System type: modular workstation kit
• Materials: steel and aluminum profiles combinable
• Options: manual/electric height-adjustable tables, ESD versions
• Material flow: compatible with roller conveyors, docking and supply trolleys
• Organization: perforated back panels, swivel frames, ergonomic shelves
• Power supply: modular electrical and pneumatic connections, concealed cable routing
• Digital: integration into assistance and control systems (e.g. assembly instructions, complete documentation)
• Planning: 3D configurator and planning services available
