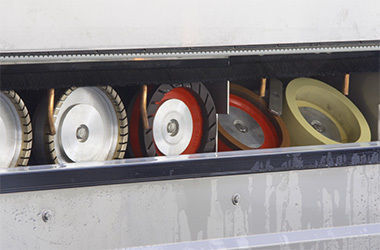

Glass edging machine Titan EVO

electronic

Product overview
The Titan EVO range comprises 10 configurations of double edgers designed for flat-edge processing, thread machining and optional edge removal. The machines support immediate transfer to tempering after corner dubbing and offer spindle options (pneumatic standard or electro-pneumatic).

Main qualities

• The Bottero range of double edgers for flat edge processing is engineered to meet industrial performance and quality requirements.
• Barcode reading simplifies and accelerates machine setup for the operator, reducing changeover time.
• The automatic dubbing unit enables finished pieces to be transferred directly to tempering; dubbed corners improve handling safety. The edge spindle is available pneumatic (standard) or electro-pneumatic.
• All machine axes can operate simultaneously, minimising setup times and maximising production efficiency.

Features

• Robust electrowelded steel structure with extensive use of stainless steel and anti-corrosion technical polymers.
• All components in contact with water are manufactured in stainless steel to guarantee long-term durability.
• Selection of mechanical and electronic components from leading manufacturers ensures reliability and long-term availability of spare parts.
• Coaxial spindles provide vibration-free operation and optimal grinding efficiency; absence of belts and pulleys reduces wearing parts.
• Polyurethane belts with stainless steel inner cables, ground on the back and sides, ensure high precision glass advancement; belt width is modular depending on glass type and weight.
• Large-diameter pulleys distribute specific load when working with heavy glass to extend belt lifespan.

Technical specifications

• 214 N
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 45.2 kW
• 216 N
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 52 kW
• 218 N
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 57.8 kW
• 220 N
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 64.6 kW
• 222 D
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 71.4 kW
• 222 L
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 71.4 kW
• 224 N
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 78.2 kW
• 226 D
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 81.8 kW
• 226 L
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 81.8 kW
• 228 N
  Minimum glass dimension: 230 x 230 mm
  Glass thickness: 3 ÷ 30 mm
  Speed: 1 ÷ 20 m/min (1 ÷ 30 m/min optional)
  Minimum power: 88.6 kW
