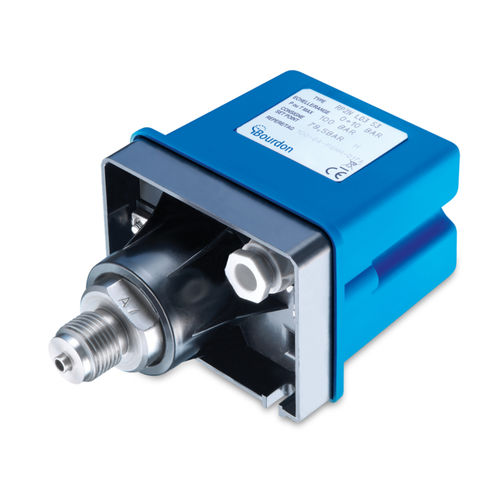

Diaphragm pressure switch RP2Nabsoluteterminal blockthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- absolute
- Electrical connection
- terminal block
- Mounting
- threaded, wall-mounted
- Material
- stainless steel
- Protection level
- IP66
- Other characteristics
- compact, stainless steel, wall-mounted
- Pressure range
Max.: 100 bar
(1,450.38 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
Excellent repeatability
Dead band adjustment for regulation
Fix dead band for control and alarm
Resistant to accidental overpressure
Light weight
Electrical data
Electrical connection
Via internal cable gland for Ø 5.5 to 8.5 mm
Ground connection
Via internal terminal block
Adjustment
Internal adjustment possible for set point and deadband
Approval / Conformities
CE conformity
Low Voltage Directive 2014/35/UE
