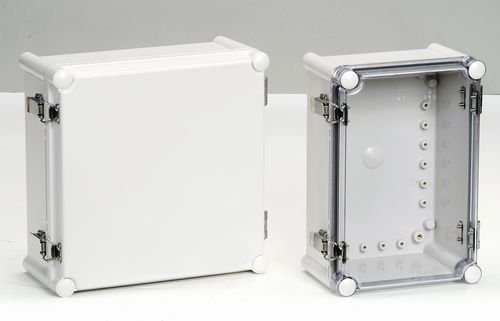

Medium-sized enclosure H series
wall-mountrectangularABS

Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS
Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS
Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS - image - 2
Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS - image - 3
Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS - image - 4
Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS - image - 5
Medium-sized enclosure - H series - BOXCO Inc. - wall-mount / rectangular / ABS - image - 6
Add to favorites
Compare this product
Go to the BOXCO Inc. website for more information

Characteristics

Construction
wall-mount
Configuration
rectangular
Material
ABS, polycarbonate
Application
industrial, for controllers
Protection level
waterproof, IK 08, IK 07, IP66, IP67
Other characteristics
with transparent cover, double-door, lockable, with hinged cover, medium-sized
Width

Min.: 190 mm
(7.5 in)

Max.: 560 mm
(22 in)

Height

Min.: 190 mm
(7.5 in)

Max.: 560 mm
(22 in)

Depth

Min.: 100 mm
(3.94 in)

Max.: 180 mm
(7.09 in)

Description

Medium size 1. BOXCO's non-metallic enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and draw latch. 2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge and draw latch in accordance with increasing of enclosure size. 3. Our H series control boxes have designed to easily and simply assemble hinge and latch by customers. Specification IP rating : IP 66/67 IK Rating : IK 07/08 Temperature range : ABS : - 40 ~ + 70 │ Polycarbonate(PC) : - 40 ~ + 110 Flammability Rating : ABS : 94-HB │ Polycarbonate(PC) : 94-V-0, 5VA, HB
