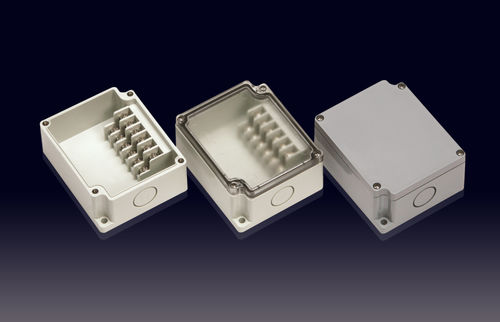

1. BOXCO's terminal block box is made from flame-retardant material.
2. It has an integrated 6P terminal block as T type(stair type) and there are 21mm knockouts on each end.
Level of dustproof and waterproof
IP 66/67
Impact test
IK 07/08
Temperature range
ABS : - 40 ~ + 70 │ PC/ABS : - 40 ~ + 70
Flammability Rating
ABS : 94-V-0│ PC/ABS : 94-V- 0, 5VA
Rated insulation voltage
400V
Rated impulse voltage
4KV
Rated current capacity
0.75mm sq. – 1.5mm sq.
