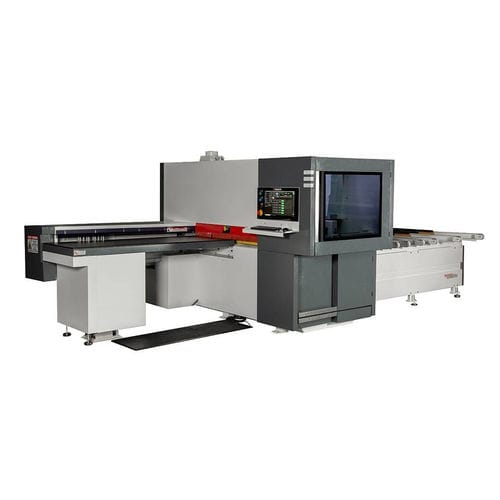

CNC drilling machine 5000 Smart X

for woodvertical

•5000 Smart X can perform drilling,grooving and milling processes precisely and for mass production. •5000 Smart X can perform processes from top and below which enables to process 6 sides of woodpiece easily. Holemaster 5000 Smart X can fulfill whole requirements for large scale companies easily. Office Program - - Standard Maximum Working Area - mm - UnlimitedX1300X50 Minimum Working Area - mm - 250x100x8 Upper Drilling Unit Motor Power - kw - 1,5 Lower Drilling Unit Motor Power - kw - 1,5 Milling Unit Motor Power - kw - 4,5 Upper Drilling Unit Rotating Speed - rpm - 4500 Lower Drilling Unit Rotating Speed - rpm - 4500 Milling Unit Motor Rotation Speed - rpm - 18000 Upper Drilling Unit Spindle Number - n0 - 13 Vertical+10 Horizontal Lower Drilling Unit Spindle Number - n0 - 7 Vertical Spindles Upper Drilling Unit Saw Blade Number - n0 - 1 Control System - Program - Omaksan Works Adeko-Alphacam-Cabinet Vision - Program/ Pos - Optional Air Floating Table - - Standard CE Certificate - - Standard
