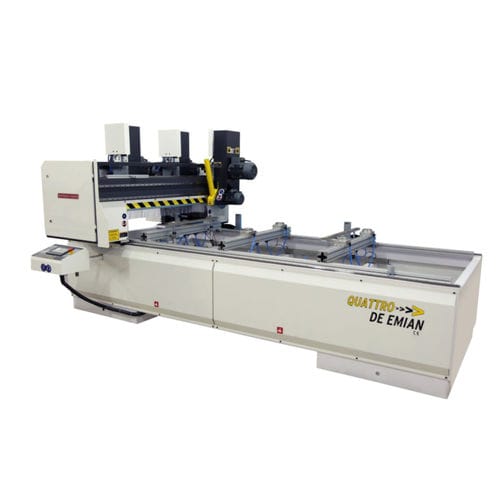

Straight-knife cutting machine Quattro De Emianfor woodpanelfor doors
Add to favorites
Compare this product
Characteristics
- Technology
- straight-knife
- Material
- for wood
- Product handled
- panel, for doors
- Other characteristics
- automatic, pneumatic
Description
This machine is using in the wooden door panel 4 sides cutting after the press process. It is designed for error-free and mass production.
• Automatic working control system
• Pneumatic working control system
PLOTTER MOTOR POWER - 3 X 0.55 KW
CUTTING MOTOR POWER - 3 X 4 KW
GEAR MOTOR POWER - 2 X 0.37 KW
VACUUM MOTOR POWER - 0.37 KW
MIN.MAX CUTTING WIDTH. - 650 – 1000 MM
MAXIMUM CUTTING LENGTH - 2100 MM
VOLTAGE - 380 V (THREE PHASE)
AIR PRESSURE - 6-8 Bar
DIMENSIONS(WIDTH-LENGTH-HEIGHT) - 2100-4000-2200 MM
