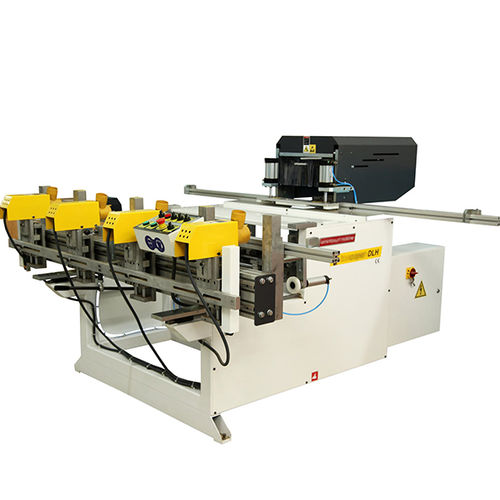

CNC drilling machine DLH

for hingespneumatic

DLH Machine is designed for the wooden doors hinges and at same the all lock systems operations. (door lock hole drilling and door handle hole drilling.) •The machine can finish the operation in 90 seconds. (lock) • The machine has pneumatic clamping system. • Milling motor movements are automatic. • Milling operation is manual movement. • Motors have an ability of selection positions. • Copy units, easily modified and adjusted. Motor Power - :kw 3,3 Carrier Support Table - :cm 230 Max. Door Thickness - :mm 0-50 Max. Miling Capacity - :mm 0-280 Voltage - :V 380V / 50Hz Inlet Air Pressure - :BAR 6 Dimensions (width-lenght-height) :cm 230x205x155 Parts of hinges Motors - :kw 3×0.55 (opsiyonel 4×0.55)
