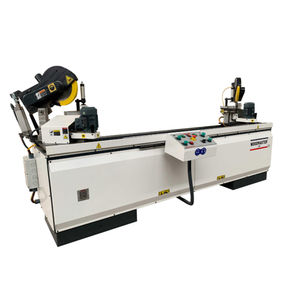

WOODMASTER 200 aoutomatic double mitre saw and double I type routing machine.
Manuel positioning control system.
Fixed 45 °
Saw blade Q 200 mm
Max cutting lenght 190 x 2000 mm ( standart )
Cutting capacity 75 x 30 mm ( width/thickness)
Voltage 220-380 v 50 hz
Cutting motor 0,55 kw /4500 rpm
Routing motor 0,55 kw /20.000 rpm
Dust exhaust ø 40 mm
Aır inlet pressure : 6-8 bar
Dimensions ; width : 80 cm lenght : 285 cm Heigth : 130 cm
Weight :~300 kg
Distance of between drilling : standart ( 28/32 mm)
