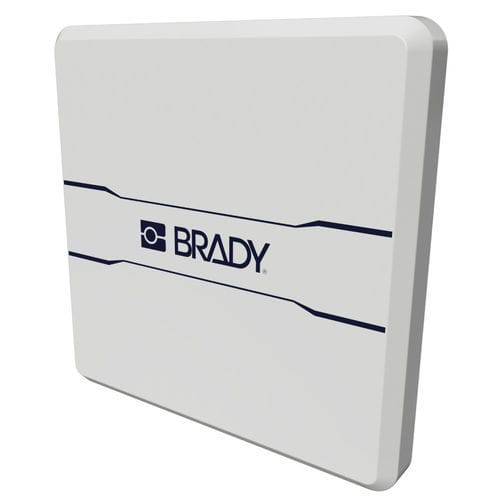

RFID antenna GA30 panellong-rangehigh-gain
Add to favorites
Compare this product
Characteristics
- Network
- RFID
- Type
- panel
- Other characteristics
- high-gain, long-range, wide-band, circular polarized
- Gain
10 dB
Description
Ingress Protection Rating:IP68
Beam Width:50° / 50°
Dimensions:300,00 mm (W) x 300,00 mm (H) x 33,20 mm (D)
Application(s):Asset tracking, Inventory and inspection labelling, RFID labelling, Temperature indicating labelling
Antenna Features:10 dBic RHCP Polarisation
Connector:SMA Female connector
Overview :
Brady GA30 is a global band antenna with real circular polarisation, enabling it to be used at its maximum performance in any region worldwide and with any tag orientation.
- The Brady FR22 attaches natively to the back of the Brady GA30
- High gain to achieve the longest RFID reading distance
- Usable on all surfaces, including metal
- Incredibly performance in every orientation
- VESA standard mounting
