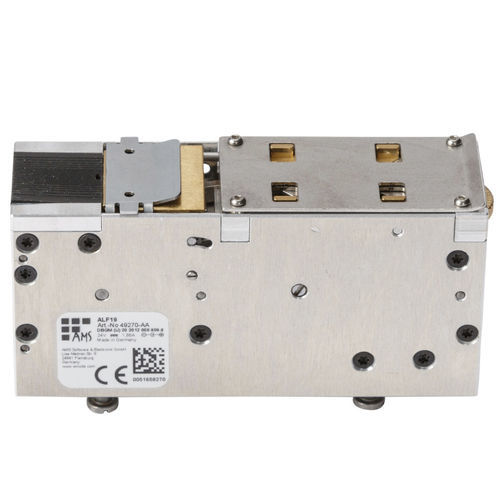

Label dispenser ALF19-XS

automaticcompactheavy duty

Application(s): Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling Max. Label Width (mm):18.00 mm Continuous vs Die Cut Labels:Die-cut Overview : Meet the newest member of the ALF (Automated Label Feeder) range! The ALF19-XS Label Feeder automatically feeds preprinted labels to a pcb (printed circuit board) component pick & place machine in a fast, efficient, reliable and easy way at an affordable price. The ALF19-XS has a minimal footprint, remote control and fast operation. - Size/Width: 28mm unit width. Small footprint on SMT line, which allows for a higher variety of components to be placed. At the same time opens up 1 to 2 more slots compared to the ALF14-25 - Smallest label: 2x2mm. Largest label: 18x18mm. Liner width: from 4 to 21mm. Designed to work with the label size needed - User interface: fast material changeover and quick adjustments through UI screen and three buttons on the outer end of the adapter - Reduce Scrap/Waste/rework - Automation removes the risk of human error. Poke-Yoke or Lean practices dictate that this can be done via automated processes - Increase labelling accuracy - some labels (e.g. 5 x 5mm) are virtually impossible to accurately label in any volume by hand - Affordable traceability - The feeder range is the most economic & efficient option to comply with traceability requirements that are being driven down the supply chain in many industries - Remote access via Wi-Fi: get real-time status of the Label Feeder - Fully automated solution: once set up, works seamlessly in conjunction with the component placement equipment
