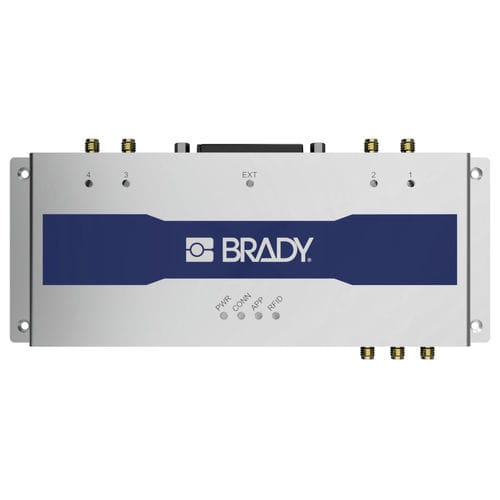

Compact RFID reader FR22 series

fixedUSBwireless

Connectivity Options: Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g Display Type: None External Antenna Port: 4 ports RP-SMA female Ingress Protection Rating: IP20 Application(s): Asset tracking, Inventory and inspection labelling, RFID labelling, Temperature indicating labelling Overview The Brady FR22 is the core device of a new approach for RFID fixed systems with wide communication options and a modular design. The FR22 is a critical building block for various track & trace and intelligent manufacturing solutions. Wide communication options that enable flexibility in system designing and no need for external connectivity hardware New UHF RFID engine based on the very latest technology Develop embedded web apps with user interface. Eliminating the need for external PC/tablet Extension connector for plug and play accessories like Brady MUX 16 port multiplexer Full set of API's available for controlling the reader
