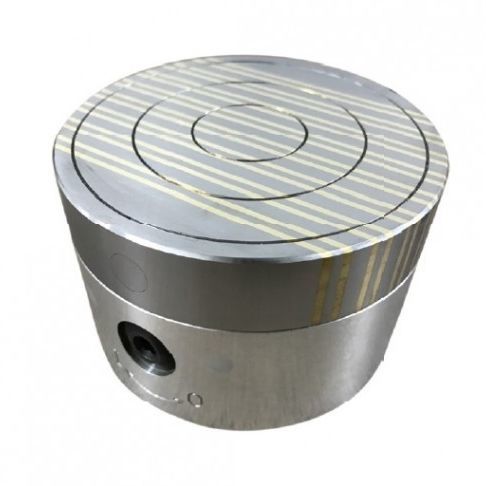

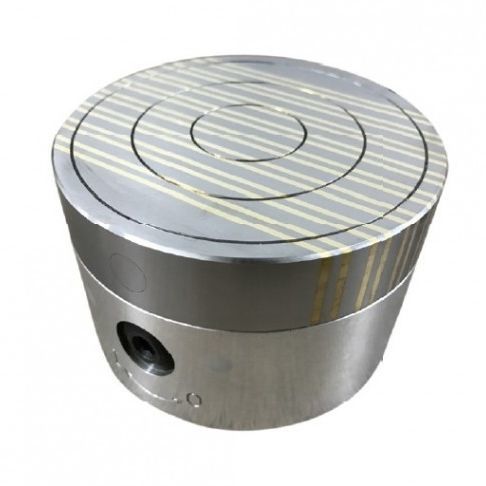

Circular magnetic chuck 11.04

permanent magnetfor grindingfor EDM

Circular Permanent Magnetic Chuck type FFM Heavy duty constructionWaterproof constructionForce: 70 N/mm² . Twin magnetic system with NEODYMIUM (rare earth) magnets . Parallel pole pitch (Steel + Brass) . Concentric rings for easy centering of workpieces Included with purchase: - 1 Actuating Key Use :GrindingEDMTurning Nominal force :70 N/cm²Pole pitch :9/11 mm1,5 mm of brass4/6+2 mm of steelAdmissible wear of top plate :5-7 mmMagnetic field height :10 mm Options :Auxiliary top plate Machinings possible at the rear of the chuck Fitting adaptors to: . Morse cone 3 or 4 . Short taper flanges for: A2 DIN 55026 Bayonet DIN 55027 Camlock DIN 55029
