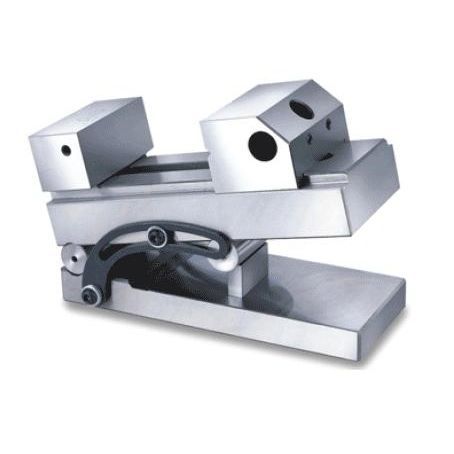

Sine vise 40.07 seriesfor EDMprecisionsteel
Add to favorites
Compare this product
Characteristics
- Applications
- for EDM
- Configuration
- sine
- Other characteristics
- precision, steel
- Max. clamping range
Min.: 0 mm
(0 in)Max.: 125 mm
(5 in)- Weight
2.9 kg
(6.393 lb)- Width
Min.: 48 mm
(1.9 in)Max.: 98 mm
(3.9 in)- Length
Min.: 150 mm
(6 in)Max.: 245 mm
(10 in)
Description
Sine vise type EPS
Sine
Heavy duty construction
Safe
Effective
. Made of hardened tool steel
. Hardenned and precision ground
. Hardness: HRC60
. Angle of tilt up to 45 degres
. Supplied with sine conversion table
Use :
Grinding
EDM
Milling
metrology
Squareness :
0.005/100 mm
Parallelism :
0.005/100 mm
