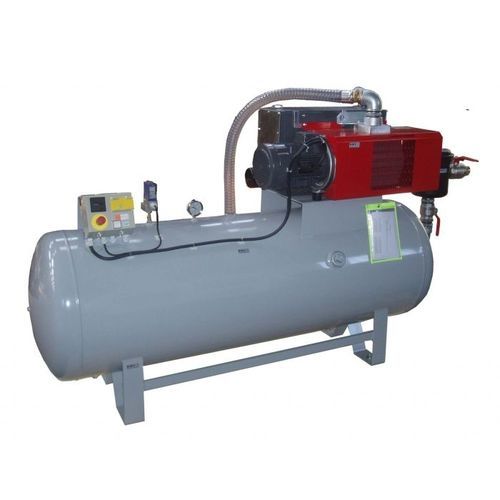

Rotary vane pump vacuum unit 30.10 serieslubricatedindustrial
Add to favorites
Compare this product
Characteristics
- Configuration
- lubricated, rotary vane pump
- Applications
- industrial
- Flow rate
100 m³/h, 150 m³/h, 200 m³/h, 300 m³/h
(3,531.47 ft³/h, 5,297.2 ft³/h, 7,062.93 ft³/h, 10,594.4 ft³/h)- Suction pressure
0.5 mbar
(0.007 psi)
Description
With ON/OFF switch
Heavy duty construction
Long service life
Safe
Effective
. oil-lubricated rotary vane pumps
. Starting box (to CE standards)
. Vacuum switch-manually adjustable vacuum threshold value
. Vacuum gauge
. Air filter and strainer
. Air ballasting and non-return valve
. Capacities from 100 m³ to 300 m³
. Vacuum storage tank (300 & 500 liters) to compensate for possible leakage
The pump will start only when the vacuum threshold value is at the minimum position (this minimum value depends on the clamping force needed for your machining).
Use :
Grinding
Milling
Machining
Planning
Voltage :
400 VAC
VIDEO
