Manually switched electro lifting magnet 400 - 4 000 daN, 210 - 240 VDC | SQUAREMAG LIFT serieshandlingrectangular
Add to favorites
Compare this product
Characteristics
- Type of commutation
- manually switched
- Applications
- handling
- Shape
- rectangular
- Lifting force
Max.: 4,000 daN
Min.: 400 daN
Description
According rules: EN13155Rugged & compact constructionEffectiveHigh holding powerSureFor flat plate
. Steel housing
. Tapped mounting holes
. Cable lenght 3 meters
. Safety factor x3
In order to obtain the nominal holding force indicated above, the work piece (in steel ST37) must cover the entire operating face with optimal thickness.
Use : LiftingHandling
Duty cycle : 100 % Max. temperature of use : 100 °C Voltage : 210/340 VDC
Options :Other dimensions
Other voltage
Renforced model
Catalogs
No catalogs are available for this product.
See all of Braillon Magnetics‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Other Braillon Magnetics products

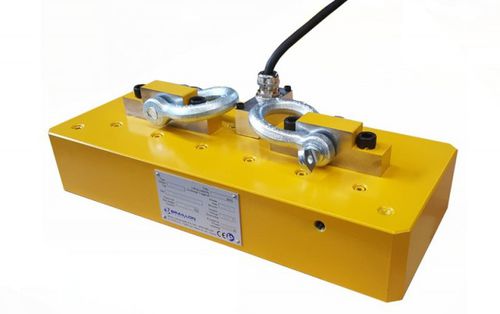

Electropermanent lifting magnets
