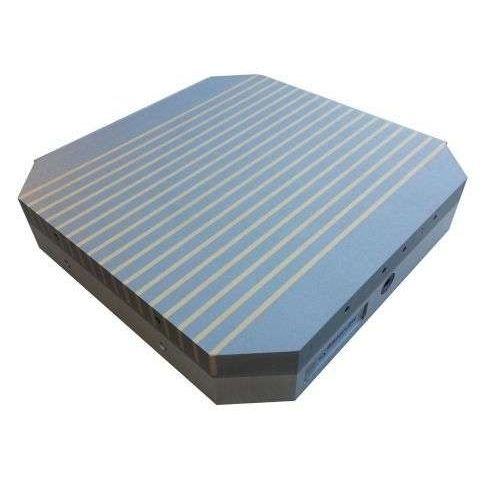

Permanent magnet magnetic chuck 40.60.03 seriessine tablefor grindingfor milling
Add to favorites
Compare this product
Characteristics
- Technology
- permanent magnet
- Type
- sine table
- Applications
- for grinding, for milling, for turning, for drilling
Description
High holding power
Twin magnetic system
Waterproof construction
. Permanent magnetic chuck with NEODYNIUM (rare earth) magnets
. Twin magnetic system (magnets inserted into the body and into the top plate)
. Extremely high holding force
. Equipped with end stops
Use :
Milling
Drilling
Contouring
Machining
Planning
Nominal force :
150 N/cm²
Pole pitch :
15 mm
4 mm of brass
11 mm of steel
Admissible wear of top plate :
5 mm
Magnetic field height :
8 mm
Options :
- Sine table execution
- Adapted to palletizing system: Erowa/3R/Hirschmann/Vischer&Bol
