Commercial vehicle ADAS calibration system CONNEX Digital ADAS 2.0 EXTRA

Overview
CONNEX Digital ADAS 2.0 EXTRA is the latest addition to the MAHLE / BRAIN BEE range, designed for workshops that service increasingly diverse fleets. Its modular features enable advanced ADAS calibrations and remote procedures while remaining suitable for different workshop types.

EXTRA fast

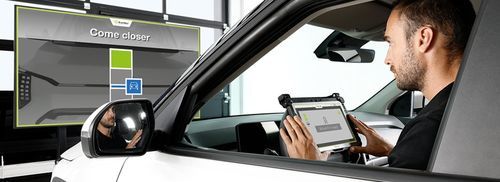

Positioning sensors provide guided vehicle alignment, significantly reducing preparation time. The vehicle can be positioned by driving it toward the structure; instructions displayed on the monitor and on the diagnostic tool, activated by the proximity sensor, indicate the stop point. Keystone image-correction technology ensures accurate target projection and shortens calibration setup.

EXTRA dimensions
The 75-inch high-definition display supports full-scale (1:1) target projection, meeting manufacturers' requirements for remote calibration and covering full technical needs for target size and placement.

EXTRA adaptability
The 90° rotating screen enables large vertical target projection required for commercial vehicle calibrations (e.g., IVECO Daily). The structure reaches up to 2.50 metres, allowing calibration of large and commercial vehicles and providing versatility for different workshop layouts.

Technical specifications

• Positioning sensors for guided vehicle alignment
• Monitor and diagnostic-tool instructions activated by proximity sensor
• Keystone image-correction technology for precise target projection
• 75-inch HD display capable of 1:1 (full-scale) projection
• 90° rotating screen for large vertical targets (suitable for commercial vehicles)
• Structure maximum height: up to 2.50 metres
• Suitable for remote calibration and a diverse fleet including large/commercial vehicles
• Designed to reduce calibration preparation times and improve workshop efficiency
