Simulation software
OPCOPC servercontrol

simulation software
simulation software
simulation software
simulation software
simulation software
simulation software
Add to favorites
Compare this product


Characteristics

Function
control, simulation, viewer, development, design, HMI terminal programming, editing, diagnostic, data exchange, OPC, OPC server
Applications
PLC, Ethernet
Type
online

Description

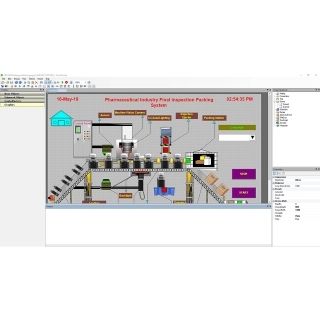

Powerful and user friendly Panel Studio editing software supports many PLC drivers. Good features include Fine components, Trends, Alarms, bar-graphs, Recipes, Multilingual. Scripts, Data logging, Remote Viewer Vector graphics, Symbol factory, Online/Offline Simulation for Rapid application development. Free, powerful and friendly HMI editing software 2-editing styles in both GUI wizard and Property grid Lots of fine-made objects of Meters, Sliders, Digital LED, Check boxes, Combo boxes, Number Up/Down, etc. 112 basic symbols, high-resolution, vector format, some in 6 colors, flipped and rotatable in 4 directions in design time Basic symbols support moving and 32 band run-time animation on background color, visibility, flip, rotation Optional Symbol Factory with symbols over 4K, flipping, rotating in 4 directions, changing color in design time Symbol Factory control allows 50 band run-time animation, each band in different colors or blinking Picture box to import pictures in bmp, wmf, jpg, gif & png formats Drawing tools like rectangle, ellipse, etc., maximum 32 bands, each band with visible control, filling color & blinking Drawing tools like rectangle, ellipse, etc., with run-time animation like filling, moving & sizing Many PLC drivers supported on both Serial & Ethernet ports via OPC server Data exchange between two different PLCs as a gateway Diagnostic tools for drivers like OPC server & OPC client to test communication between PC and PLC directly IO poll groups, different scan rates for PLC tags, possible to scan tags always or only tags on active page Retentive and non-retentive internal variables available for

Catalogs

No catalogs are available for this product.

See all of BRAINCHILD ELECTRONIC CO., LTD‘s catalogs
