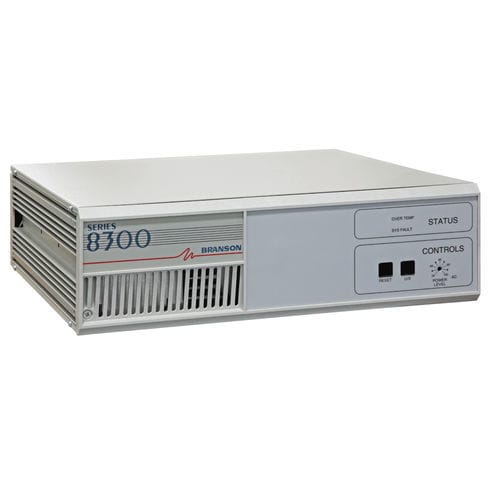

Ultrasonic cleaning generator 8300 series

Branson Series 8300 Ultrasonic Generator offers a full range of features to meet any precision cleaning requirements. Used on a simple cleaning tank or in a fully integrated cleaning system, the Series 8300 will deliver precise cleaning quickly, consistently, and cost effectively. Output Frequency 25 or 40kHz Element Configurations 6, 12, 18, 24, 36, 48 Input Voltage 110 V, 220 V Average Output Power 40 Watts per element Regulatory Approvals FCC and CSA Dimensions 17.5”W x 16.8”D x 5.5” H Weight 30 lb. (13.6 kg) Output Power 17.5”W x 16.8”D x 5.5” H - Line/load regulation compensates for liquid level and temperature changes as well as line voltage and load variations - True variable power control makes the cavitational intensity (not duty cycle) infinitely and linearly variable from 20% to 100% - Sweep frequency minimizes standing waves and improves ultrasonic activity distribution; operates at a rate of 80 Hz per second across a bandwidth of 1400 Hz - Auto tuning maintains optimum operating frequency around your application - I/O interface option permits remote on/off control of the generator - Safety features to protect the generator include over-temperature, overload, open circuit, and short circuit
