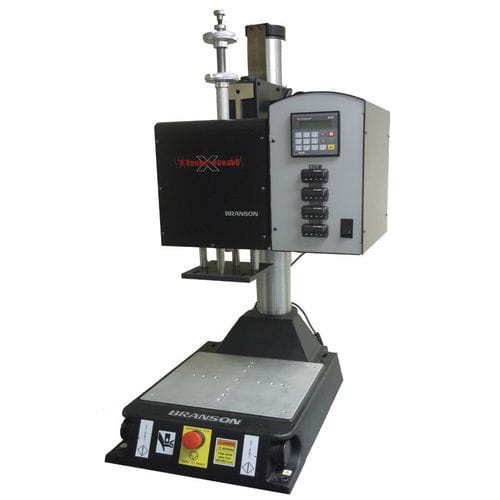

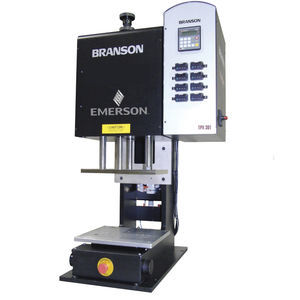

Spot welding machine TPX201
thermalsemi-automaticfor metal

spot welding machine
spot welding machine
Add to favorites
Compare this product


Characteristics

Technique
spot, thermal
Operational mode
semi-automatic
Applications
for metal, for plastics
Other characteristics
hydraulic, pneumatic

Description

Designed for heat staking, thermal insertion, swaging, degating and date stamping Tooling Platen 165 W x 165 D Tooling Stroke 102 mm Throat Depth 152 mm Pneumatic Requirement Clean (5 micron), dry air, 552 kPa (80 psi)@20 CFM Max Weight Approx. 79.4 kg Weight Actuation Pneumatic Cooling System - New improved Unitronics operator interface/controller with 3 digit display and increased I/O - Discrete, full-function temperature controllers and self-teach mode - Temperature control monitoring and alarm - 18-1/2 maximum working height without upper and lower tooling - New easy access adjustable hydraulic rate control for end of travel, adjustable from 0 to 0.875" - Full positional feedback for software control of beginning and end of stroke signals - New remote mountable control module (requires optional cable) - Pressure regulator, gauge and filter with lcok out/tag-out
