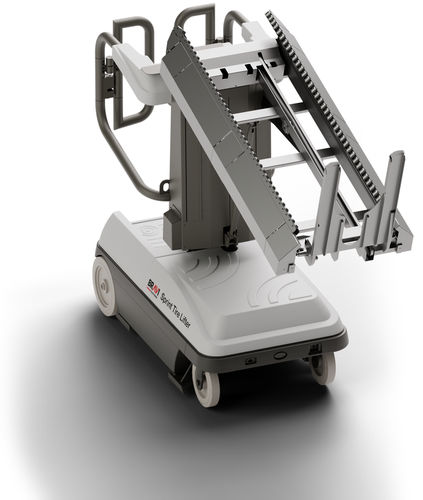

Order-picking lifting device Sprint Tire Lifter

battery-poweredmobilefor tires

The safer and faster solution for handling tires with precision and reliability. Working height up to 5 meters (16 ft) Motorized lifting compartment with capacity of up to 150 kg (330 lbs) Compatible with SUV tires up to 800 mm (31.50 in) diameter Compact design, ideal for tight spaces The perfect solution for tire handling Sprint Tire Lifter is designed to safely lift the operator and tires, positioning them at the desired height, for quick and effortless handling. The fully motorized front compartment with a capacity of up to 150 kg (330 lbs) allows even SUV tires with or without rims to be handled. Foldable forks lower all the way down to the floor to facilitate loading directly from the wheel dolly. Technical specifications Working Height 5000 mm (16 ft 4 in) Platform height 3000 mm (9 ft 11 in) Stowed unit height 1515 mm (59.4 in) Unit length 2275 mm (89.5 in) Lunghezza basamento (forche chiuse) 1778 mm Unit height – stowed tire holder 1665 mm (65.5 in) Unit height – with elevated tire holder 1914 mm (75.3 in) Total Unit width 808 mm (31.8 in) Entry step 394 mm (15.5 in) Lift compartment capacity 150 kg (330 lbs) Platform Capacity 130 kg (286 lbs)
