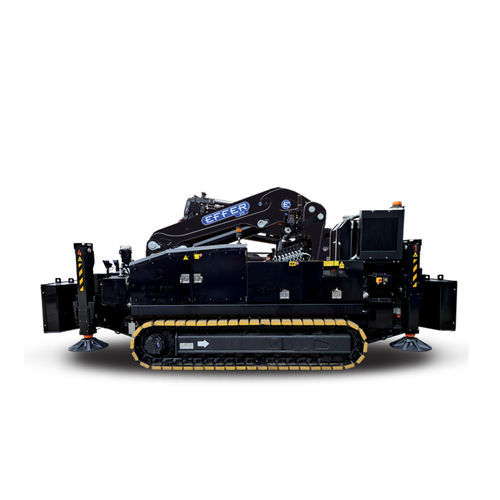

Crawler crane CWE 315

boomrough terrainlifting

The brilliant crane, with performances that until now were considered impossible. CWE 315 is an exclusive project of BG LIFT,born from the need to create a compact and light crane, but at the same time strong and powerful as his colleagues of higher dimensions. The results? More than 26 meters of horizontal outreach and almost 10 Ton of maximum lifting capacity in a reduced chassis, agile and extremely maneuverable Dimensions ( h × w × l ) 2,43 × 1,62 × 4,70 m Weight 10000 kg Lifting capacity 9715 kg Max outreach with Jib 4S 26,35 m Maximum lifting height with hydraulic Jib 4S (from the ground) 29,2 m Maximum lifting height (underground-winch) -53 m Technology Every Function Under Control The remote control with display for integrated control displays all the parameters in real time. No Limits Rotation Infinite unobstructed rotation thanks to the ballast-free boom. Always Ready to Work “X” frame that makes it possible to work with the outriggers within gauge and with the minimum clearance. Easy To Drive It can stabilise and work on rough terrain. Load & Transport The compactness and the wide ground clearance angle allows the crane to be loaded using Short ramp. Jib Over Line Noteworthy Jib Length and Load. Eletric Engine Always Allowed 15 Kw Three Phases Electric Engine, 400V inverter controlled.
