5-axis bridge saw Hydra

for stonefor ceramics

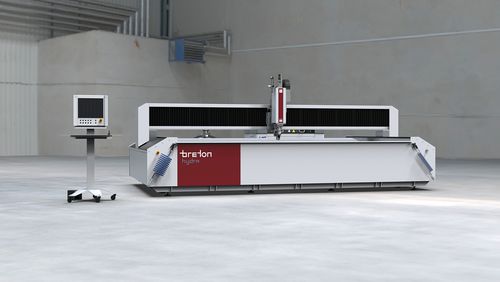

Breton Hydra is a 5-axis waterjet cutting center designed for processing natural stone, quartzites, ceramics, and compound stone. Engineered for complex applications that require absolute precision in fabrication shops. Breton Hydra is a 5-axis waterjet cutting center designed for processing natural stone, quartzites, ceramics, and compound stone. With its rigid bridge structure, integrated tank, and galvanized slat table, it delivers outstanding stability, reliable slab protection, and safe operation. The ultra-compact head with advanced kinematics (C ±540°, A ±60°) makes it possible to perform complex geometries and extreme angled cuts with tolerances up to ±0.1 mm. The exclusive MiterWave Touch system continuously adjusts axis positioning to deliver perfect 45° cuts, even on thin or uneven materials. The KMT Streamline 50 pump comes standard, delivering up to 3,800 bar / 60,000 psi for fast, precise cutting and reliable productivity even in the most demanding applications. Rounding out the equipment, the electronic dosing unit with Safety System automatically stops the jet when abrasive is absent, protecting the workpiece and lowering operating costs. Control is achieved via the ZM Technologies or Taglio Logotag CAD/CAM software, automating the entire programming process: from DXF import to CNC-ready ISO code.
