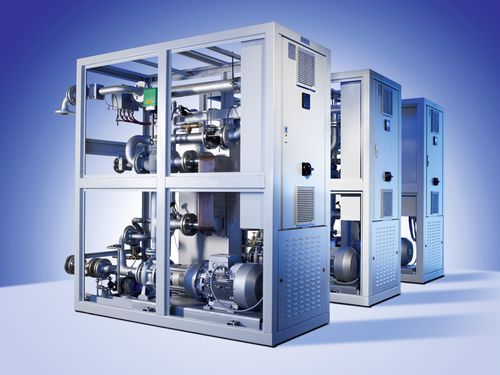

Digital temperature control unit

heatingprocesscooling

BREYER temperature control units are compact high-performance devices for use with hot water of up to 180°C. They are used to control the temperature of rolls in calenders. Equipped with all connectors they are delivered with an integrated control cabinet. The high-quality component equipment allows for reliable and safe operation. All components are integrated in an accessible and maintenance-friendly way. The temperature control units have a closed cycle system with automatic infeed system via magnetically coupled filler pump and pressure-free compensating reservoir. The system pressure is automatically adjusted depending on the temperature. The unit can be operated directly via the integrated user interface or the system control interface. Alarms, process data and status messages are displayed locally on the user interface. When integrated in the extrusion line, this data can also be forwarded to the system control and visualization system. Components Rotary pump: performance: 30 m³/h (500 l/min) Drive performance approx. 7,5 kW Bearing: supported by shaft bearings on both side Seal: air-cooled mechanical seal Cooling: indirectly via integrated plate heat exchanger and 3-way mixing valve Cooling capacity: 145 kW (relating to 20 °C cooling water and 100 °C circulating water Heating performance: 45 kW The following equipment options are available: Stainless steel pipe Bypass for filter Magnetic-inductive flowmeter
