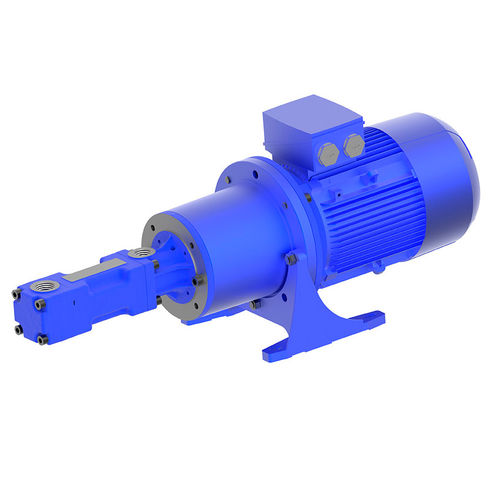

Screw spindle pump FFS2 series
for coolantfor lubricantselectric

screw spindle pump
screw spindle pump
Add to favorites
Compare this product


Characteristics

Fluid
for coolant, for lubricants
Operation
electric
Technology
screw spindle
Domain
industrial, for the metallurgical industry, for machine tools
Applications
high-pressure, discharge, for emulsions
Material
steel
Fluid specification
cutting fluid
Other characteristics
compact, suction, horizontal mount, high-efficiency, high-performance, high-flow
Flow

Min.: 21.6 l/min
(5.70612 us gal/min)

Max.: 57.6 l/min
(15.21631 us gal/min)

Pressure

Min.: 10 bar
(145.038 psi)

Max.: 150 bar
(2,175.566 psi)

Power

Min.: 0.75 kW
(1.02 hp)

Max.: 18.5 kW
(25.15 hp)

Description

Screw spindle pumps with their silicon carbide spindle housing and highly wear resistant spindles are capable of achieving extremely high pressures. Brinkmann high pressure screw pumps are designed for pumping filtered and lubricating fluids such as coolant oils andwatersoluble coolants. High pressure screw pumps are NOT designed for dry-running. Applications Kinematic viscosity - - higher viscosity upon request - Pumping temperature - - higher temperatures upon request - Max. air content - - 3 - 5 vol. % - Recommended filtration levels - - General Machining (Turning, milling, drilling) < 50 µm Grinding and machining of aluminum < 20 µm For additional information please refer to mechanical features within the technical information section. Construction Pressure and Suction Housing - - Cast iron Spindle Housing - - Silicon Carbide, one-piece, highly wear resistant and precision Screw spindles - - Hardened tool steel specially treated, alloy; highly wear resistant and precision ground Gasket - - Viton
