Stainless steel pump TVA series
centrifugalwaterfor solvents

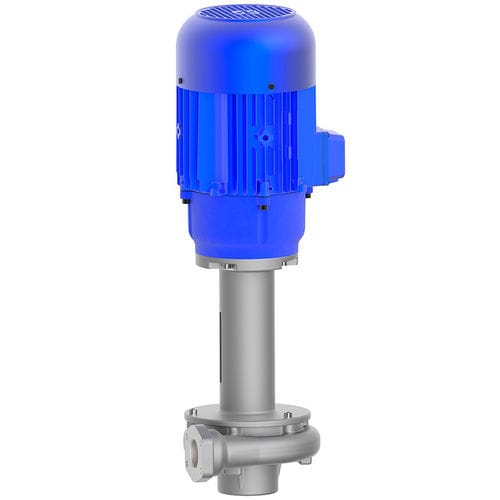

Stainless steel pump - TVA series - Brinkmann Pumpen - centrifugal / water / for solvents
Stainless steel pump - TVA series - Brinkmann Pumpen - centrifugal / water / for solvents
Add to favorites
Compare this product
Go to the Brinkmann Pumpen website for more information

Characteristics

Technology
centrifugal
Fluid
water, for solvents, for coolant, for bases
Operation
electric
Priming
semi-submersible
Mobility
stationary
Domain
industrial
Applications
washing, cleaning, for industrial applications, for emulsions
Material
stainless steel
Fluid specification
for refrigerant fluids
Voltage
380 V, 460 V
Protection level
immersion
Other characteristics
compact, low-pressure
Flow

770 l/min, 900 l/min
(203.41248 us gal/min, 237.75485 us gal/min)

Head

32 m, 42 m
(104'11" , 137'09" )

Power

Min.: 1.7 kW
(2.31 hp)

Max.: 5.75 kW
(7.82 hp)

Height

Min.: 325 mm
(12.8 in)

Max.: 426 mm
(16.77 in)

Weight

Min.: 47 kg
(103.62 lb)

Max.: 94 kg
(207.23 lb)

Description

Stainless Steel Immersion Pumps are centrifugal pumps of compact design with a semi-open impeller mounted directly onto the extended motor shaft. The TVA pump series achieves very good hydraulic efficiencies while being well suited for handling small metal chips and fines. This makes this pump series the perfect choice for industrial washing applications of metal parts. Complete pump and plate assemblies, including discharge pipe and mounting plate are available upon request.
