Vortex pump FT series
for coolantfor lubricantselectric

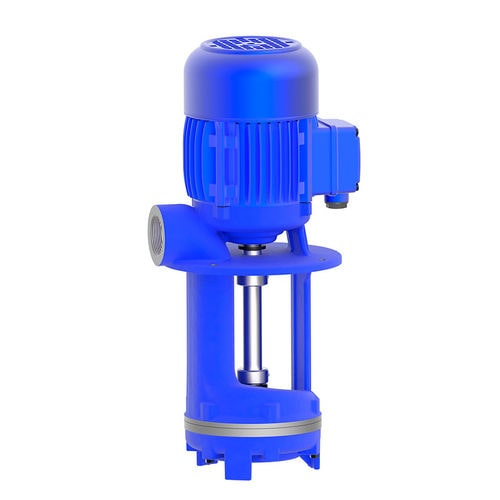

Vortex pump - FT series - Brinkmann Pumpen - for coolant / for lubricants / electric
Vortex pump - FT series - Brinkmann Pumpen - for coolant / for lubricants / electric
Add to favorites
Compare this product
Go to the Brinkmann Pumpen website for more information

Characteristics

Technology
vortex
Fluid
for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Domain
industrial, for machine tools
Applications
cooling, lift
Fluid specification
cutting fluid
Flow

Max.: 200 l/min
(52.83441 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Head

Max.: 6.5 m
(21'03" )

Min.: 0 m
(0'00" )

Power

0.21 kW, 0.55 kW
(0.29 hp, 0.75 hp)

Description

Free Flow-Immersion Pumps FT35...FTA140 Semi-open impellers Free Flow-Immersion Pumps series FT/FTA are provided to lift coolant for filtering. Middle shreds can be transported together with liquids. Applications Types of fluid - - coolants cooling/cutting oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...60° C - Construction Pump body - - cast iron Cover - - cast iron Impeller - - brass Shaft - - steel Optional: - - Cover - - POM (FT35) Impeller - - POM cast iron - - Noise level - - 45 dBA (FT35) 60 dBA (FTA140)
